Overview
The Schneider OsiSense pressure sensor measures fluid pressure.
Manufacturer Part Numbers
| Manufacturer | Part Number | Description |
| Telemecanique Sensors | XMLK100P2D23 | Telemecanique Sensors Air, Fresh Water Pressure Switch, Analogue 0 → 100psi, 24 V dc |
| Telemecanique Sensors | XZCC12FDM40B | Telemecanique Sensors M12 4-Pin Female Connector |
Wiring
| Function | OsiSense | C3 Output Port | Solo |
| Supply | Brown | Port Output + | Port Output + |
| Return | Blue | Port Ground | Port Ground |

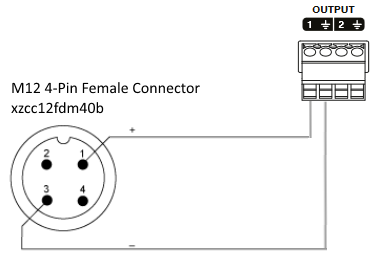

Typical Connection (C3 Port Output)

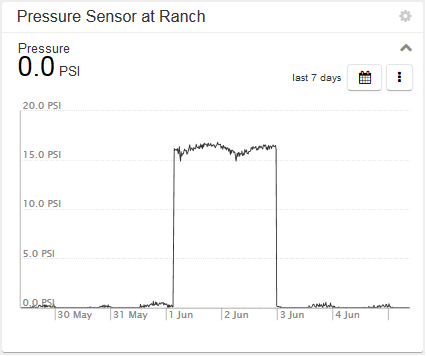

Typical View of Data in Global
Manufacturer's Product Page
Telemecanique Sensors - OsiSense XM series
Manufacturer's Datasheet
OsiSense XMLK100P2D23 Datasheet.pdf
