Before adding a new device to a field unit on Observant Global, make sure you are aware of the port on the field unit that the device will need to be connected to. You can check this from the Technical note of the relevant device.
To add a new device (sensor) to a field unit, go to Manage Equipment from the welcome page.

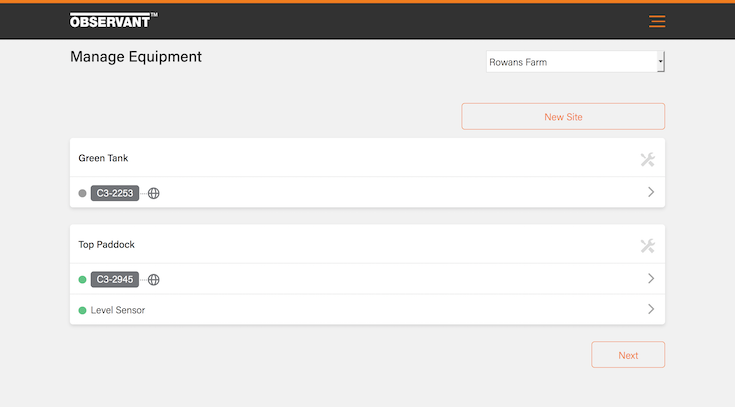

In Manage Equipment, you will see all Portfolios, Sites, Field Units and Devices that you have access to.
To add a device to a field unit, select the relevant unit. For example, click on C3-2253 to add a device to it.

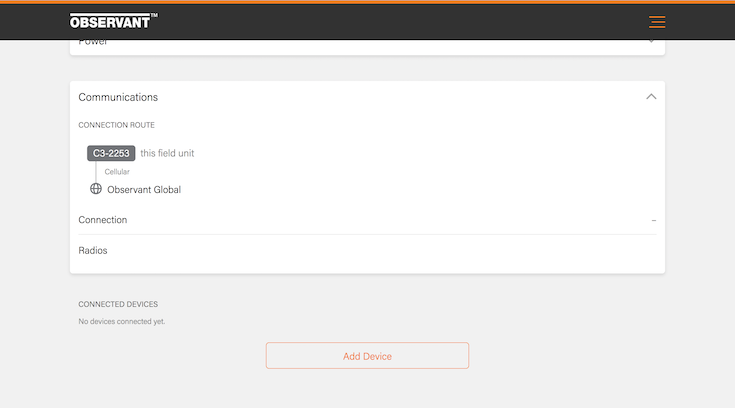

Scroll to the bottom and click the 'Add Device' button.

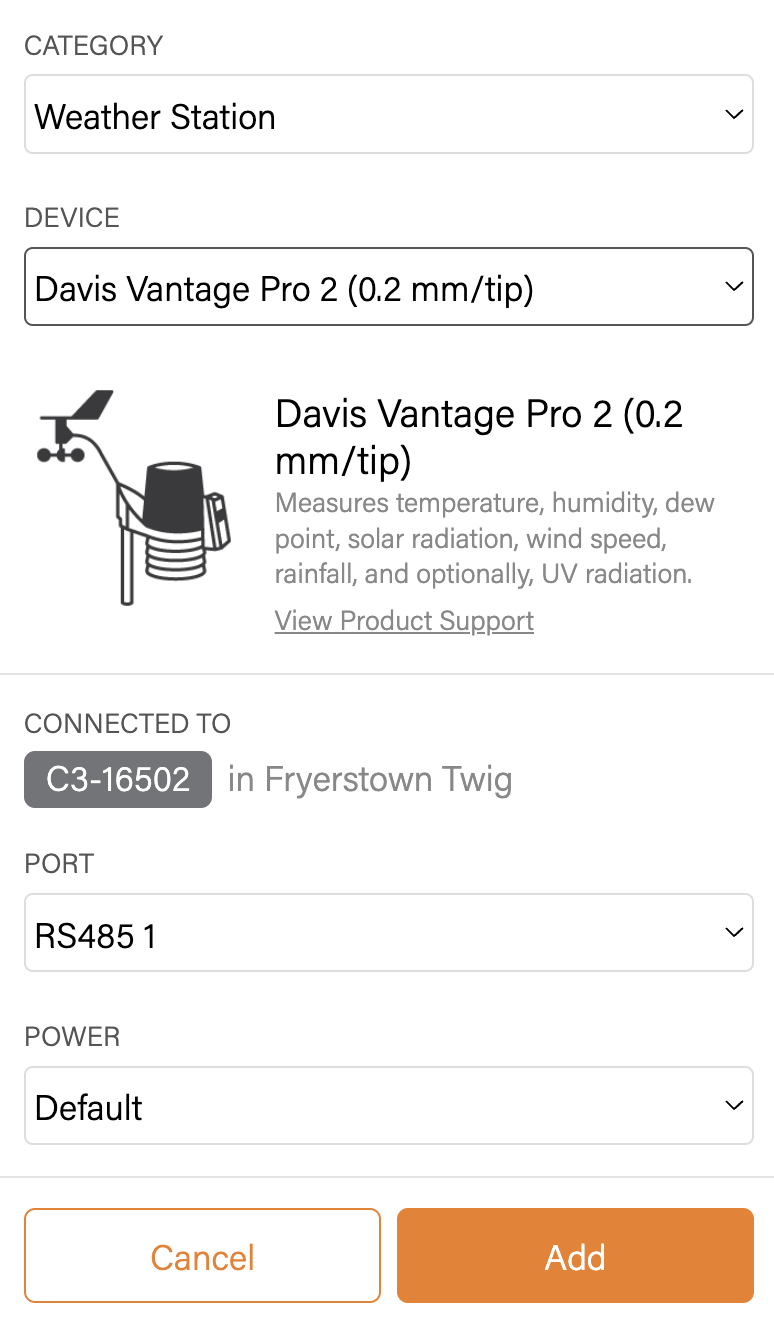

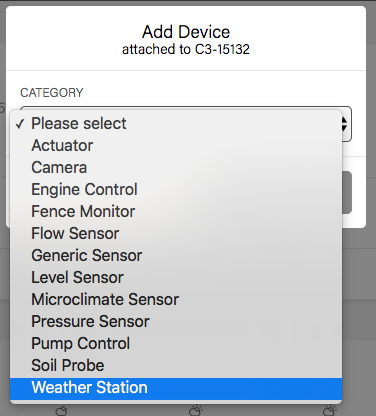

Select the category of your device from the list. As an example, we will add a Davis Vantage Pro 2 weather station.

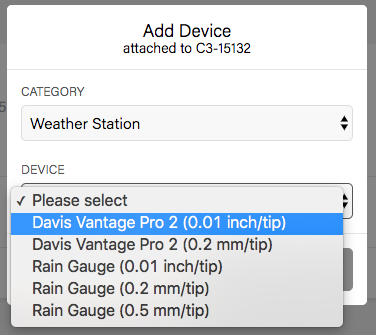

Then select your device from the Device list.
Select the port to which you have connected the device. Power should be left as Default unless the device's power wire is connected to a different port.
Then click Add.

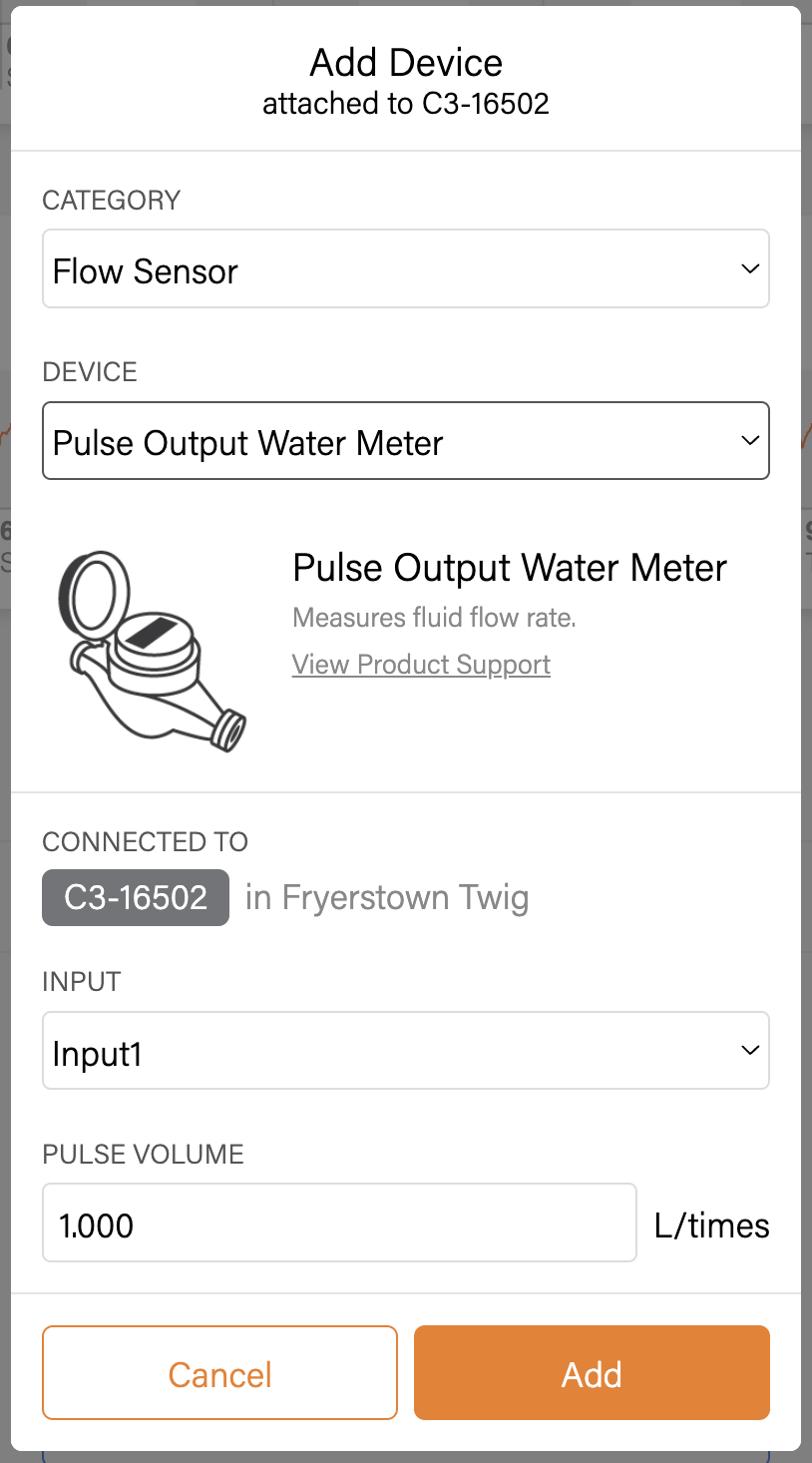

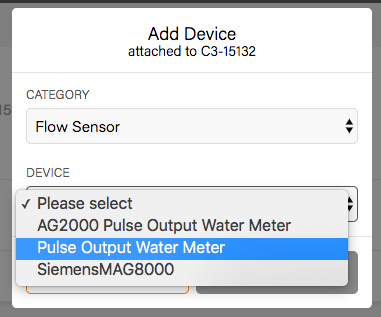

Some devices will need additional settings. As an example, we will add a Pulse Output Water Meter.
Select the port to which you have connected the device. Update the pulse volume if needed. Then click Add.

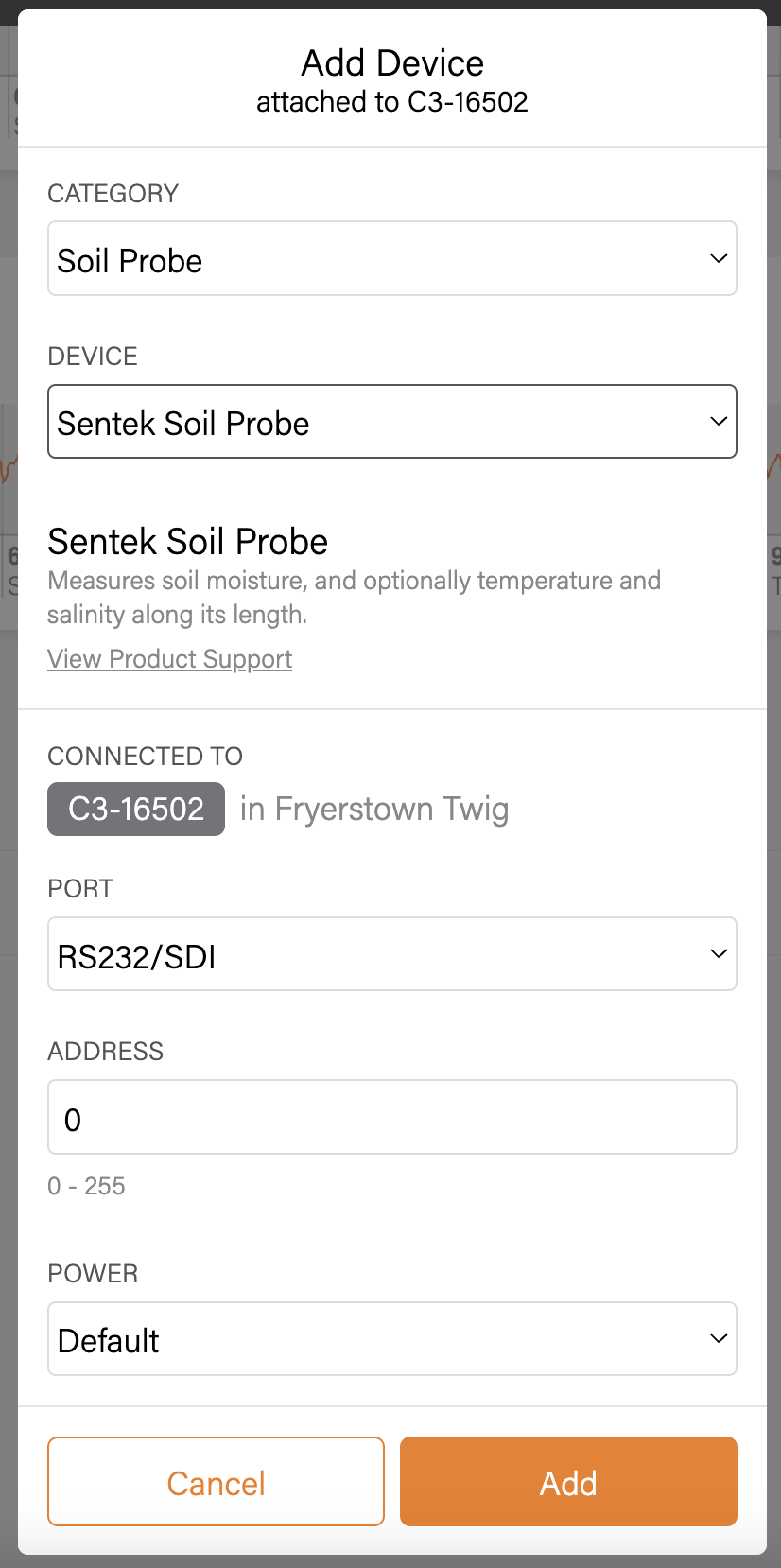

Some devices have settings that you shouldn't change, such as the ADDRESS field.
